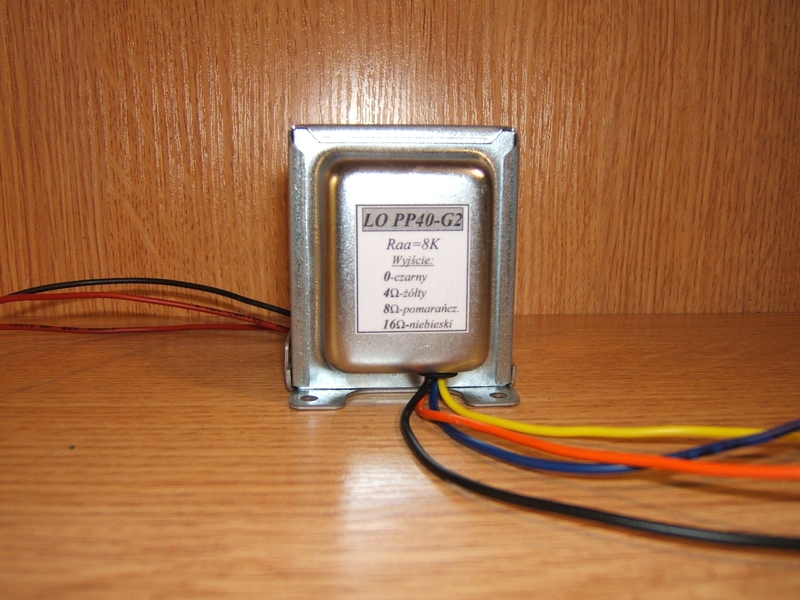

LO PP40-G2 - 2xEL84, 2x6V6

UL peel off the ultra-linear sizes overall dimensions
Ro load resistance Imax maximum current
Zaa anode-anode impedance core core type
weight approximate weight fmin minimum frequency
kn:n transmission Raa resistance of the anode-anode
Laa inductance of the anode-anode, f=120Hz fmax maximum frequency
price price Pmax maximum power
Push Pull - PP40-G2
Pmax Za Imax Raa UL kn:n Ro La
40 W 8 Ω 200 mA 8000 Ω - - 4 and 8 and 16 Ω -
fmin fmax Core Size W Size H Size L Weight Count
EI66/32 PDF specification, version without caps
PDF specification, version of a lens cap
PDF data sheet for the version with two caps
1 kG 1
1-5 units 5+ units 10+ units 25+ units
66.0 USD tel. tel. tel.
extra charge for a version with a single cap tel.
payment for the version with two caps 12.0 USD
